OVERVIEW

The K- JC 805 is an easy to use compact jaw crusher that is designed to crush a wide range of applications. This type of crusher provides excellent performance in recycling, contracting and quarrying industries. Its quick set-up times,ease of transport and ease of use makes K- JC 805 the ideal solution for all medium to large operators.

Jaw Crusher

1. 815x520 mm
31x21 inch

Output

Up to 140 tph
160 US tph

CSS Range

30 mm to 100 mm

Power Unit

Stage V 100 kW
135 Hp Diesel
Tier 4F 100 kW
135 Hp Diesel
Stage 3A 100 kW
135 Hp Diesel

ITS FAVOURITE FOOD

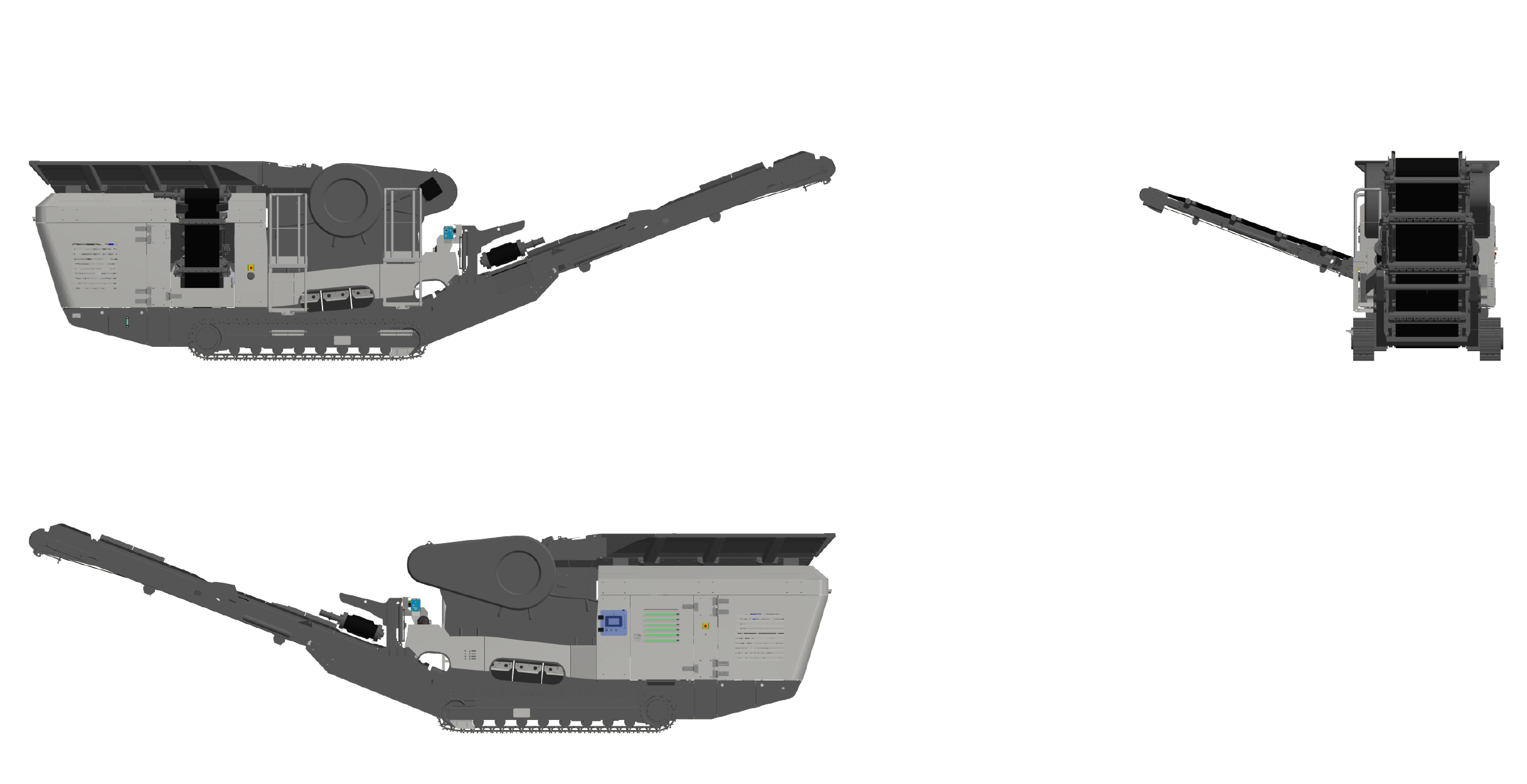

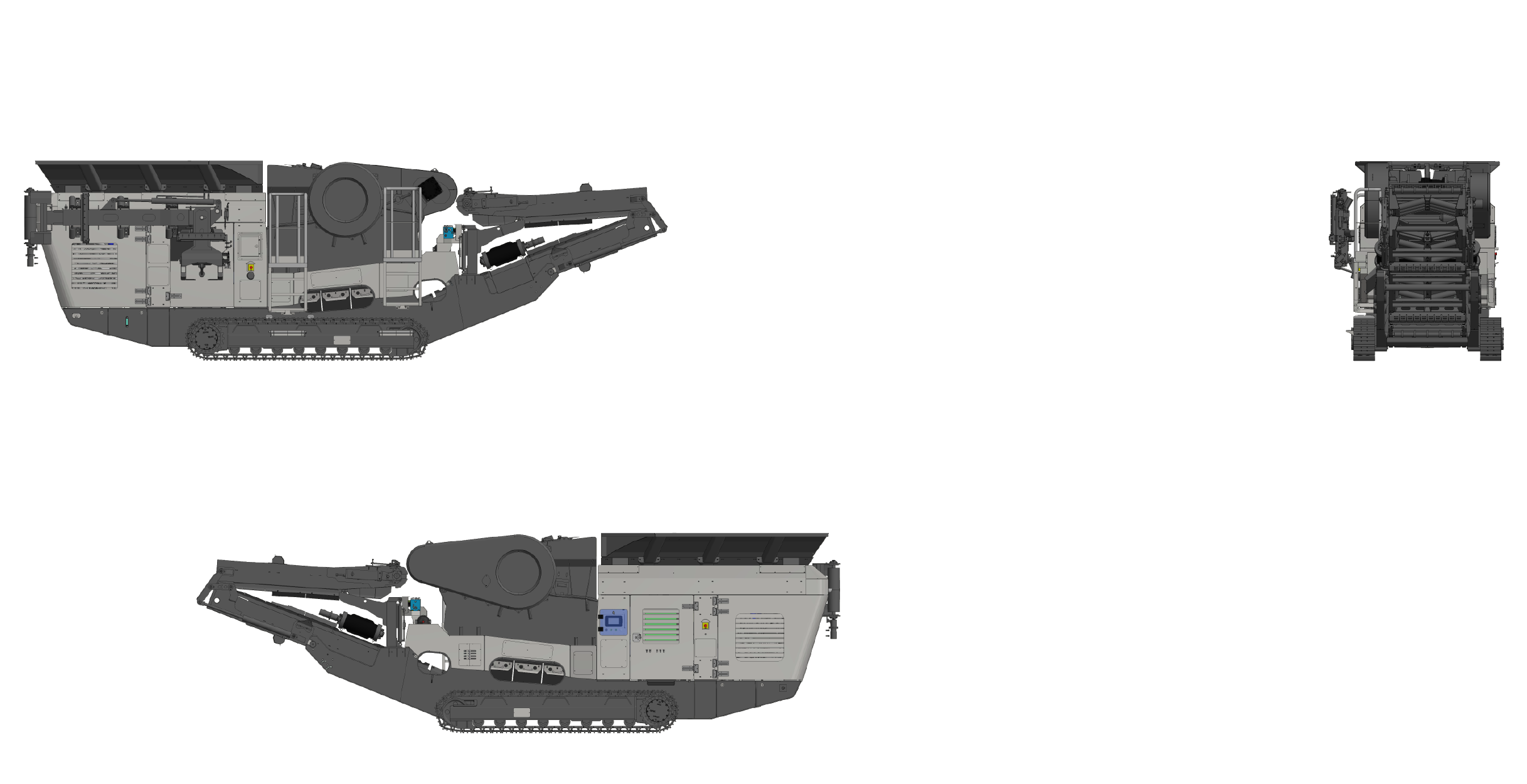

COMPACT AND
LOW WEIGHT

Compact size for versatility, maneuverability and ease of transport. You can even fit it into a 40ft container

18.5

TONS

SMART MACHINE
FOR SMART WORKERS

Quick set-up

Typically under 15 minutes

Remote monitoring system

Check it with Komplet-connect

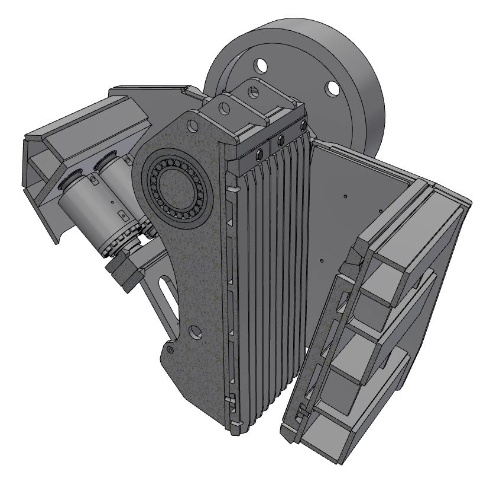

Direct drive chamber

Reverse jaw function

For sticky applications, clearing blockage

Sensors

Keep the chamber level under control

ABJUSTABLE JAW APERTURE

Set the the right aperture based on the job you need

MORE ACCESSIBLE THAN EVER

Excellent access to drive belts and hydraulics. Access Platform and open chassis designed for ease of maintenance

VIBRATING
FEEDER

With load sensor

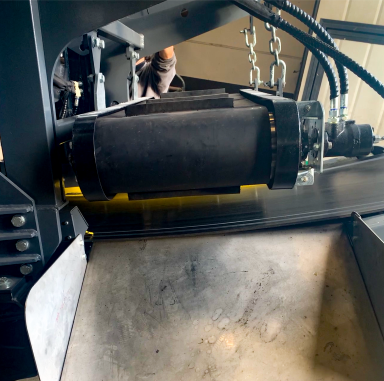

OVERBAND
MAGNETIC

With hydraulic raise & lower system

STOCKPILING
CONVEYORS

Integrated hydraulic folding

NO STOP
CRUSHING

By hydraulic release patent pending

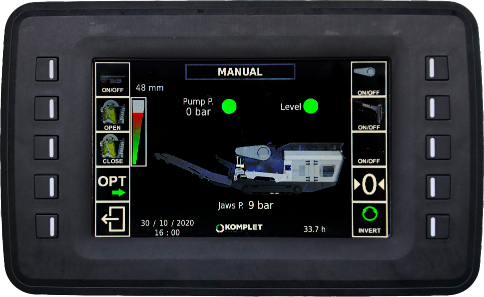

EASY
& INTUITIVE

Buttons operation
