OVERVIEW

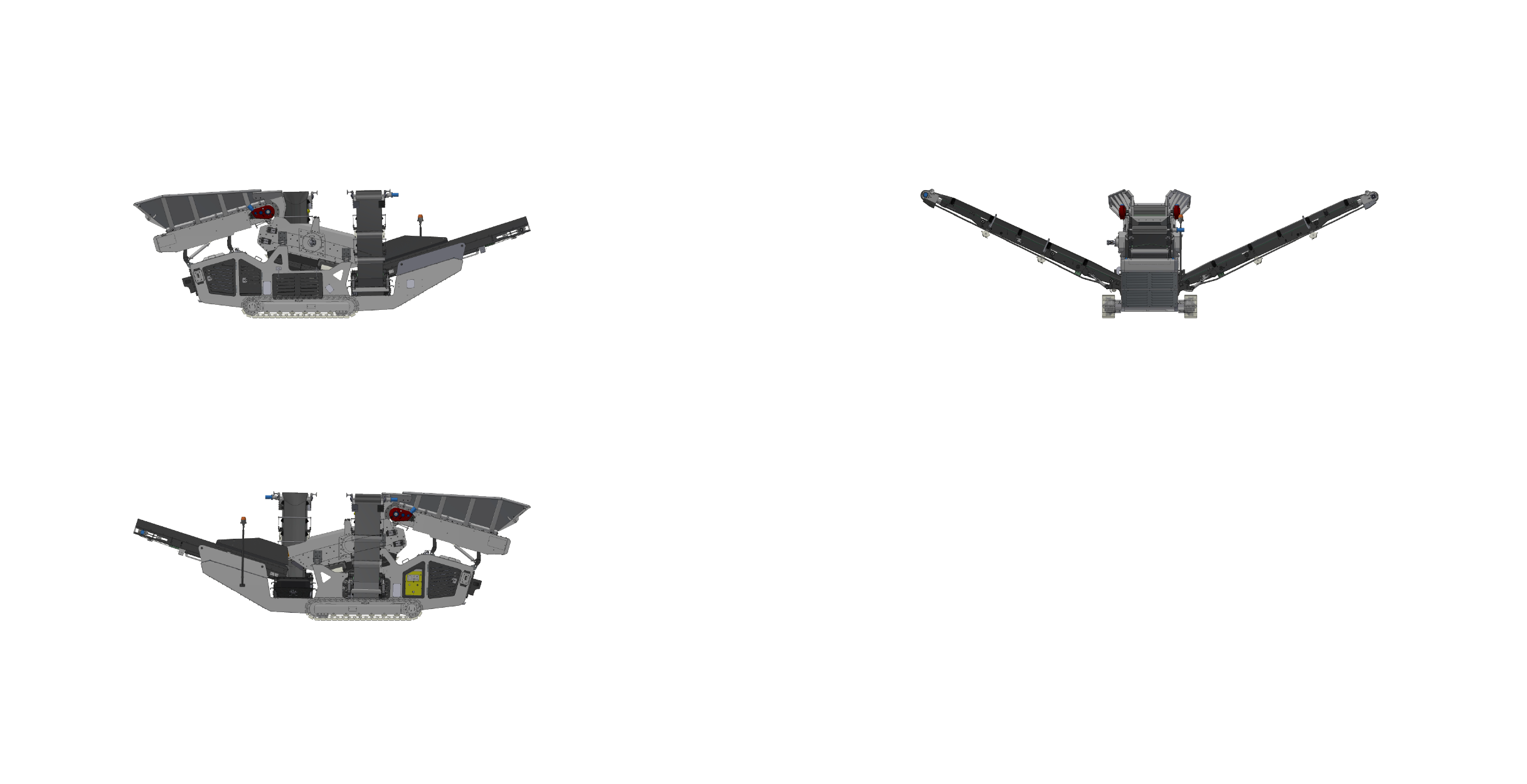

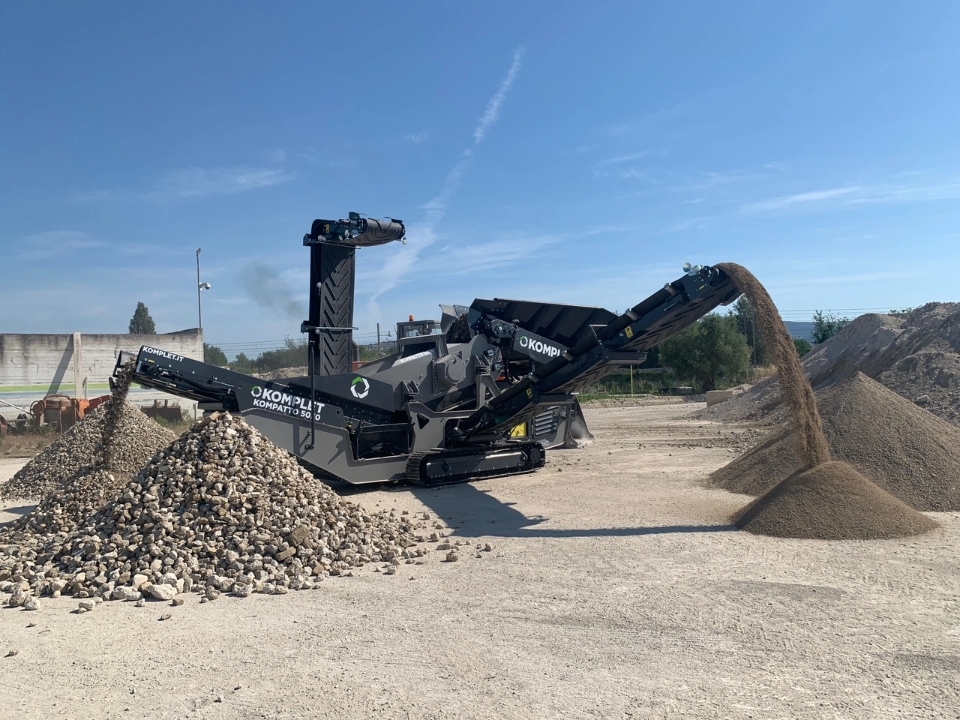

The KOMPATTO 5030 Compact Scalping Screen has been specifically designed for operators for whom versatility, maneuverability and transportability are of key importance. It is small enough to fit inside a container for transport but strong enough to withstand the toughest of applications.
The KOMPATTO 5030 is a compact and aggressive forward facing screen that can work in aggregates, sand and gravel, top soil, construction demolition and recycling applications where site space is at a premium. With the large range of screen media available including bofor bars, finger screens, woven mesh and punch plates it provides the user with a level of versatility that is second to none.
Screenbox
| 1. | 2,450x970 mm |
| 10x4 inch | |
| 2. | 2,190x970 mm |
| 10x4 inch |
Output
| Up to | 250 tph |
| 280 US tph |
Power Unit
| Stage | V | 35 kW |
| 45 Hp Diesel | ||
| Tier | 4F | 35 kW |
| 45 Hp Diesel | ||
| Stage | 3A | 36 kW |
| 47 Hp Diesel |
SMART DESIGN MINIMIZED WEIGHT
Compact size for versatility, maneuverability and ease of transport. Fits into a 40ft container.
12
TONS
FROM 3 TO 2WAY SPLIT
Fast conversion from 3 way split to 2 way split fully hydraulic for optionally mixing oversize and midsize product.
DO BOTH SCALPING AND SCREENING
Versatile screen from the operation of scalping before and screening after the operation of crushing.
REMOTE CONTROL
Using a remote control to operate a screener machine can increase safety, efficiency, flexibility, precision, and time-saving, improving the overall operator experience and increasing productivity.

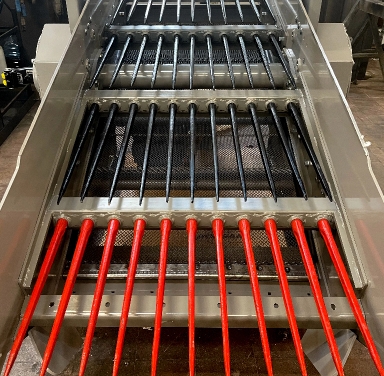

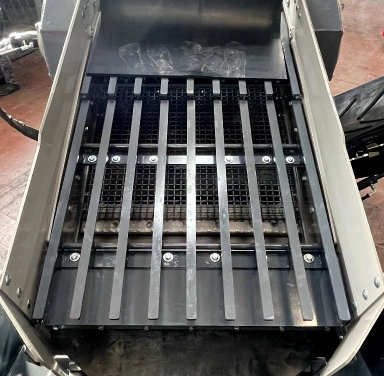

SCREENBOX SETTINGS
From scalping to screening
QUICKSET UP
HYDRAULICALLYFOLDING CONVEYORS
VARIABLEFEEDER SPEED
