OVERVIEW

The KOMPATTO SC 221 tracked screening machine is the smallest self-propelled screening plant on the market today. Lightweight, compact-sized and featuring a robust chassis, it was designed for rubble and debris screening of material coming from construction and demolition, excavations waste, compost, asphalt, rock etc. It features a vibrating 2.2×1-mt double deck with, interchangeable screens and meshes to meet all needs, and it also includes three extracting belts.

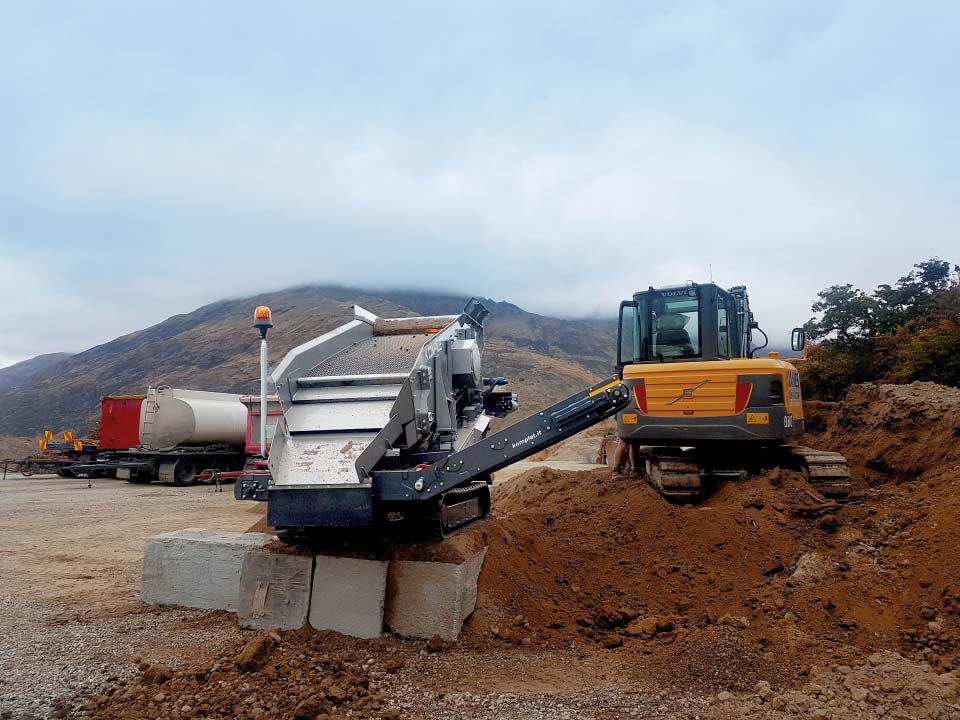

The KOMPATTO SC 221 model can be directly fed by an excavator or backhoe, it can also be fed by the crusher extraction belt or directly with the processed material. Its versatility, compact size and affordability, makes it unique. It operates in the most limited access areas, processing the same amount of materials as a large and much more expensive machine. It is fully remote controlled, so as to allow a single operator to carry all feeding and screening operations.

Screenbox

1. 2,100x1,085 mm
8x4 inch
2. 2,100x1,085 mm
8x4 inch

Output

Up to 30 tph
34 US tph

Power Unit

Stage V 18.5 kW
25 Hp Diesel
Tier 4F 18.5 kW
25 Hp Diesel
Stage 3A 21.5 kW
28 Hp Diesel

SMART DESIGN MINIMIZED WEIGHT

Compact size for versatility, maneuverability and ease of transport. Fits into a 20ft container.

3.3

TONS

DIRECT FEED ONTO PAN AREA

Designed to scalp you feed right ad the beginning

CHOICE OF SCREEN

Meshes, punch, arpa, anticlogging

REMOTE CONTROL

Using a remote control to operate a screener machine can increase safety, efficiency, flexibility, precision, and time-saving, improving the overall operator experience and increasing productivity.

QUICKSET UP

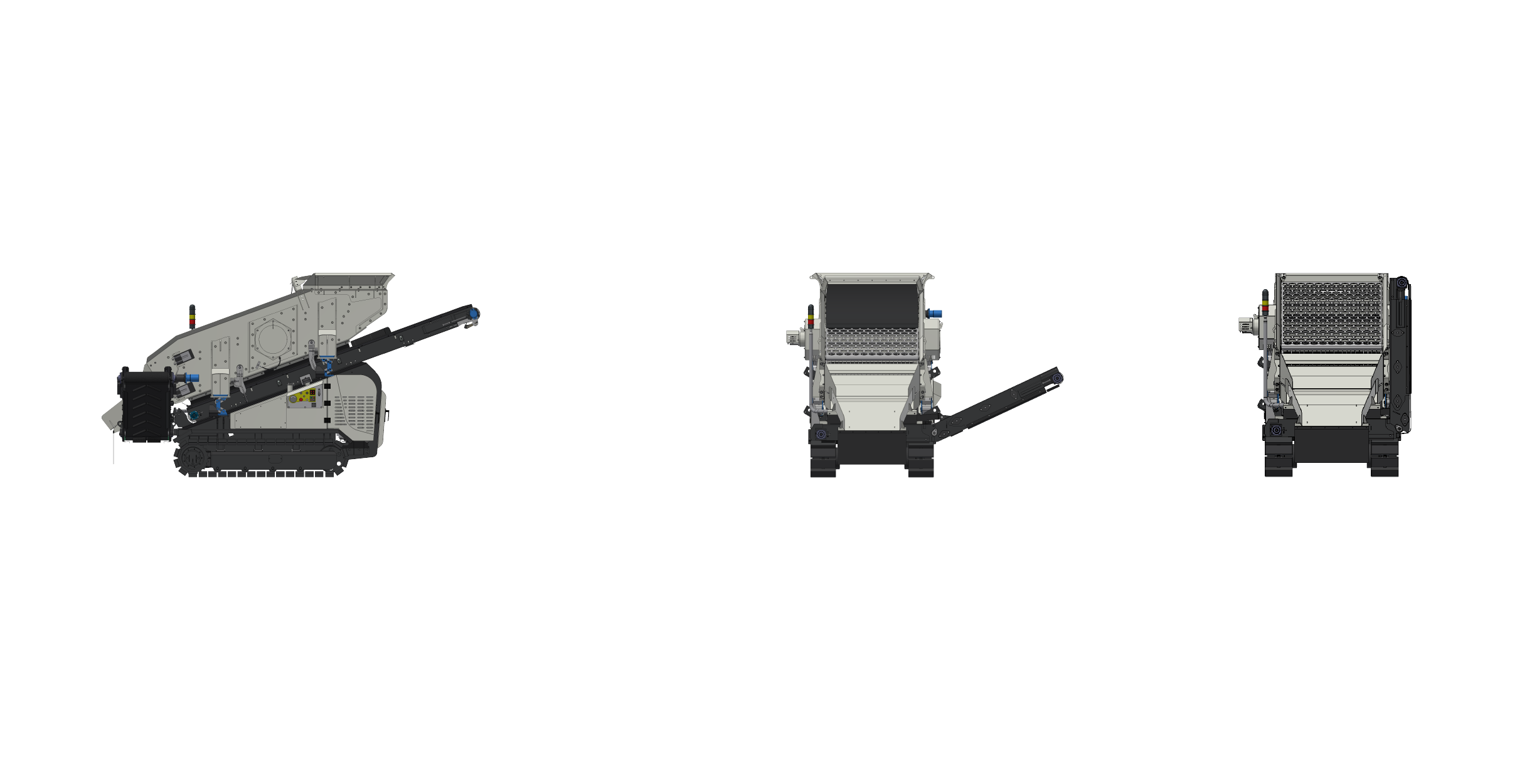

HYDRAULICALLYFOLDING CONVEYORS

END TENSIONSCREEN
